Electric blankets, electric heating pads and similar flexible heating appliances (devices) 3C certification introduction and common unqualified items sharing

Date：2020/12/22　　Clicks：1216

Since the requirements of the “Announcement of the General Administration of Quality Supervision, Inspection and Quarantine and the National Certification and Accreditation Administration on Issuing the Transition Period Arrangements for the Transfer of Motorcycle Passenger Helmets, Electric Blankets and Mopeds to Compulsory Product Certification Management” (No. 86 of 2017), November 1, 2017 After the announcement of the transition transition period from July 31, 2018, relevant companies have successively applied for CCC certification in accordance with the requirements. Our company Saida Testing Technology Co., Ltd. has continuously applied for and received consultations on the 3C certification project of electric blankets, and has applied for 3C certification of electric blankets for many companies.

1. Basic definition and certification process:

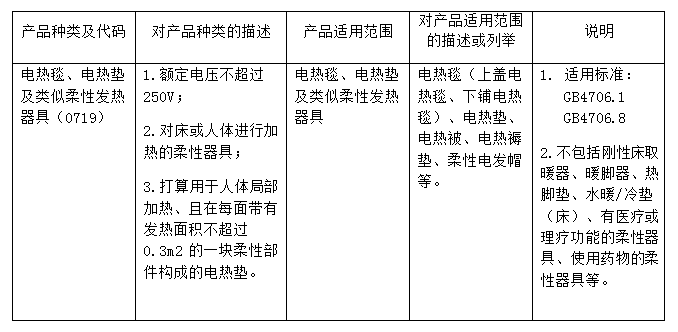

1. 3C definition of electric blanket

2. Unit division

The basis is divided into different units according to product type (electric blanket, electric heating pad, electric heating quilt, electric heating mattress, etc.), structure, function, and heating method.

3. Test standards and main test items

CCC certification test standards:

GB4706.1, GB4706.8 (only consider safety regulations)

Main test items:

Marking, structure, wiring, heating, withstand voltage, grounding, electrical clearance and creepage distance, heat resistance and flame resistance, etc.

4. Certification process

Process: submit application + sample test + factory audit and certification + supervision after certification

Note: When an enterprise makes an inquiry, the product information that the electric blanket product needs to provide includes: product pictures, electrical parameters, controller instructions or pictures and descriptions, model conditions and differences, etc.

2. Common unqualified situations:

A. Under the most unfavorable ambient temperature, both the control device and the cord switch should be adjusted to the highest setting position recommended for continuous use. The temperature should not exceed 60°C during the first hour of operation of the appliance, and thereafter the temperature should not exceed 37°C. If it exceeds, it is considered unqualified.

B. The electric blanket is immersed in NaCl solution for 1 hour, and 3000V breakdown is applied between the charged parts and the solution, which is unqualified.

C. Abnormal test, folding test, temperature rise exceeding the standard limit, fire, failure (after folding, the flexible part will stop working when it reaches a certain temperature).

D. The heating wire or internal wiring has 25,000 bending tests, and the core is disconnected or the insulation resistance is less than 1 MΩ, which is unqualified (it can work normally after passing the standard bending test).

E. There is no anti-wrinkle measures, and it is unqualified (using straps or similar methods to provide fixing measures at the four corners of the flexible part).

F. The above are common unqualified items. As a whole, the corresponding flexible component cover should be flame-resistant, and the individual controller should have CQC certification (if not, the safety test of a separate additional controller is required, and the cost is 4,000 to Please pay attention to the nameplate marking, etc. Please make your own products in strict accordance with the requirements of the national safety regulations. If you have technical problems, welcome to discuss and exchange.


As a national CNAS laboratory, Guangzhou Saida Testing Technology Co., Ltd. has already carried out CCC certification application for electric blankets and annual audit docking counseling jury services. It has rich experience in the structural requirements of electric blankets and the preparation of key components. Welcome All companies call and write for consultation!
