Power adapter CCC certification column

Date：2020/5/18　　Clicks：1403

The endurance of electronic products is inseparable from the charger and the adapter. The power adapter is to externally connect the power supply and connect the device with a wire. Under ideal power conditions, it outputs DC power to meet the low-voltage stable power supply. Power adapters for audio and video equipment and information technology equipment belong to the scope of CCC certification, and must be CCC certified before they can be sold in the market.

1. Which adapters should be CCC certified?

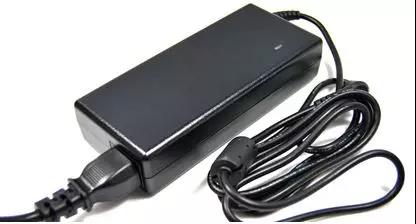

Power adapter is a power supply conversion device for small portable electronic equipment and electronic appliances. It is generally composed of components such as housing, transformer, inductor, capacitor, control IC, PCB board, etc. Its working principle is converted from AC input to DC Output; can be divided into wall type and desktop type according to the connection mode.

The power adapter belongs to the 0807 sub-category in the eighth category "audio and video equipment" "power adapter for audio and video equipment" and the 0907 sub-category in the 9th category "information technology equipment" is "computer built-in power supply and power adapter charger".

Second, the adapter CCC certification standard:
1. GB8898-2011 "Safety Requirements for Audio, Video and Similar Electronic Equipment";
2. GB4943.1-2011 "Safety of Information Technology Equipment Part 1: General Requirements";
3. GB17625.1-2012 "Electromagnetic Compatibility Limits Harmonic Current Emission Limit (Equipment Input Current ≤16A per phase)";
4. GB / T13837-2012 "Limits and Measurement Methods of Radio Disturbance Characteristics of Sound and Television Broadcast Receivers and Related Equipment".

3. The definition scope of the adapter that needs to be certified by 3C:

It is widely used in security cameras, set-top boxes, routers, light bars, massagers and other equipment. Adapters that meet the following conditions need to be certified by CCC.

1. Power adapter (type 0807) for audio and video equipment: equipment that connects the AC power supply to audio and video products and has voltage conversion functions, including power supply properties and electrical parameter conversion. The power adapter (including charger / discharger) for audio and video equipment does not include a charger designed to charge dry batteries.

2. Built-in computer power supply and power adapter charger (category 0907): suitable for power supplies installed in computers or servers with rated power below 1300W. Such as: computer / server machine power supply (with or without machine casing).

Information technology equipment supporting the AC power supply and information technology products, equipment with voltage conversion function, including power supply properties and electrical parameter conversion. Power adapters (including chargers / dischargers) for information technology equipment, excluding chargers designed to charge dry batteries.


Want to know more about the requirements and details of the adapter CCC certification, please contact us quickly! !
