Overview of CCC and VDE certification for PVC single core wire

Date：2021/7/21　　Clicks：1310

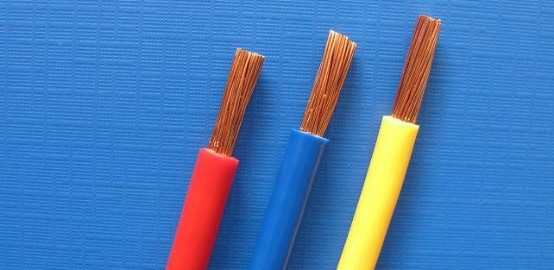

RV wire and cable adopts soft structure design, the conductor bending radius is small, and it is suitable for wet and oily installation places. It is especially suitable for flexible installation places with strict requirements, such as electric control cabinets, distribution boxes and various low-voltage electrical equipment. It can also be used for the transmission of electric power, electrical control signals and switch signals. As RV wires and cables are widely used in the field of industrial power distribution, the demand for RV wires and cables is increasing, and their certification requirements have also attracted the attention of wire manufacturers.

RV wires and cables are not only suitable for the Chinese market, but also for the European market and the Australian market. Let's briefly describe the process, requirements and precautions of RV wire and cable CCC and VDE certification.

1. CCC certification

Product name: PVC insulated non-sheathed wire and cable

Applicable standard: GB/T 5023.3-2008/IEC60227-3:1997

Common applications for RV wires and cables are:
1. General purpose single-core soft conductor non-sheathed cable
Model: 60227 IEC 02(RV)
Rated voltage: 450/750V
Specification range: 1.5-240mm2

2. Single-core soft conductor non-sheathed cable with conductor temperature of 70℃ for internal wiring. Model: 60227 IEC 06(RV) Rated voltage: 300/500V Specification range: 0.5-1.0mm2

3. Single-core soft conductor non-sheathed cable with conductor temperature of 90℃ for internal wiring. Model: 60227 IEC 08 (RV-90) Rated voltage: 300/500V Specification range: 0.5-2.5mm2

Certification process:
Certification application→type test→factory inspection→certificate issuance

Precautions:
1. The number of conductor cores of the above three models is 1 core, and the fifth type of soft conductor is required.
2. The above three models can be combined into one unit for CCC certification.
3. The enterprise can set the scope of application according to the order requirements and its own production capacity. Guangzhou Saida has a wealth of RV wire and cable certification experience and can assist companies in making the most optimized certification program.
4. The CCC certificate is valid for five years, and at least one supervisory review is required every year to maintain the validity of the certificate.

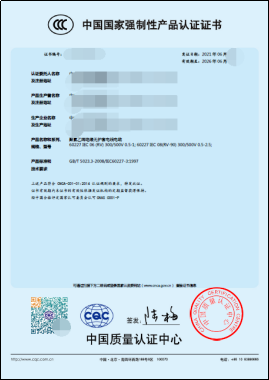

Certificate sample:

Two, VDE certification

Product name: Cables for general applications- Single core non-sheathed cables with thermoplastic PVC insulation

Applicable standards:
DIN EN 50525-2-31 (VDE 0285-525-2-31): 2012-01
EN 50525-2-31:2011

The scope of application is:
1. H07V-K 1.5-240mm2, rated voltage: 450/750V
2. H05V-K 0.5-1.0mm2, rated voltage: 300/500V

Certification process:
Certification application→type test→factory inspection→certificate issuance

Precautions:
1. The enterprise can set the scope of application according to the order requirements and its own production capacity. Guangzhou Saida has a wealth of RV wire and cable certification experience and can assist companies in making the most optimized certification program.
2. VDE accepts certification applications using CB certificate, report + difference test. For details, please contact Guangzhou Saida for confirmation.
3. The VDE certificate is permanently valid, and two supervisory inspections are required every year to maintain the validity of the certificate.

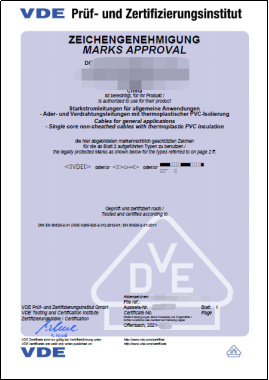

Certificate sample:
