Q&A丨Do you understand several issues related to testing, marking, and CCC certification of electronic products?
Date：2021/9/13 Clicks：910
Question one
A group of friends asked: The product has tweeter and woofer. How should I test it when 1/8?
Expert answers:
This is common in audio and video products with high and low speakers, such as speakers, which have a signal input port, and the speakers are equipped with high and low speakers. The method is as follows:
1. Determine the response frequency of the tweeter and bass speaker; for example, the tweeter contains 1kHz, and the bass response frequency contains 100Hz;
2. Then at the same time input the sine wave signal of the combined signal (1kHz+100Hz) from the signal input port, adjust the volume knob, and use the oscilloscope to monitor the maximum undistorted waveform on the tweeter and woofer to catch the first distortion in the tweeter and woofer Then record the maximum non-distortion state of the whole machine with the maximum non-distortion of the first distorted speaker, and record the effective value of the speaker voltage of the high and low speakers at this time (alternative method: use sine wave: at this time, you can pass the high and low speakers The maximum undistorted voltage RMS value is used to calculate the 1/8 RMS voltage of each speaker);
3. According to the 1/8 RMS voltage measured by the speaker at point (2), replace the sine wave signal input of the combined signal (1kHz+100Hz) with pink noise, and adjust the pink noise to make the RMS voltage on the high and low speakers reach the first (2) Point the 1/8 RMS voltage tested by the speaker, and then perform the normal input test and temperature rise test.
Question two

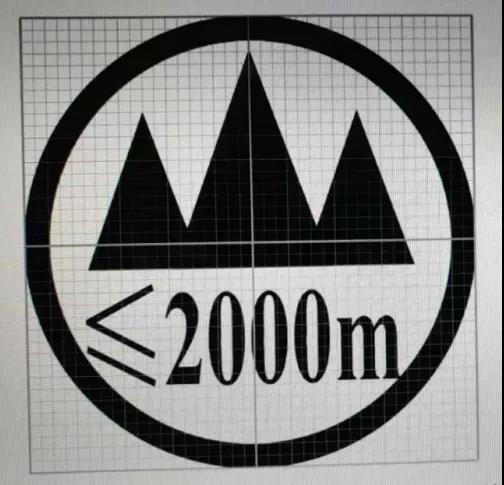

Questions from group friends: Everyone, are there any size control requirements for warning signs used at altitudes below 2000m? Which regulations require this marking?
(Picture provided by Qunyou)
The standard GB 8898-2011 "Safety Requirements for Audio, Video and Similar Electronic Equipment" and the standard GB 4943.1-2011 "Information Technology Equipment Safety Part 1: General Requirements" do not specify the size control requirements of this symbol. The symbol should be enlarged or reduced proportionally during use.
Question three
Qunyou asked: Do Bluetooth headsets that can play music independently need 3C certification?
Expert reply:
According to the Announcement of the State Administration for Market Regulation on Optimizing Compulsory Product Certification Catalogue No. 18 of 2020 and the annex "Compulsory Product Certification Catalog Description and Definition Table (Revised in 2020)" (for details, please refer to the official website of CNCA "Government Information" -"Announcement" column), "Bluetooth headset with audio playback and storage function" in the CCC catalog.
Conversely, if the Bluetooth headset does not have the "audio playback and storage function" function, it is not in the CCC catalog.
